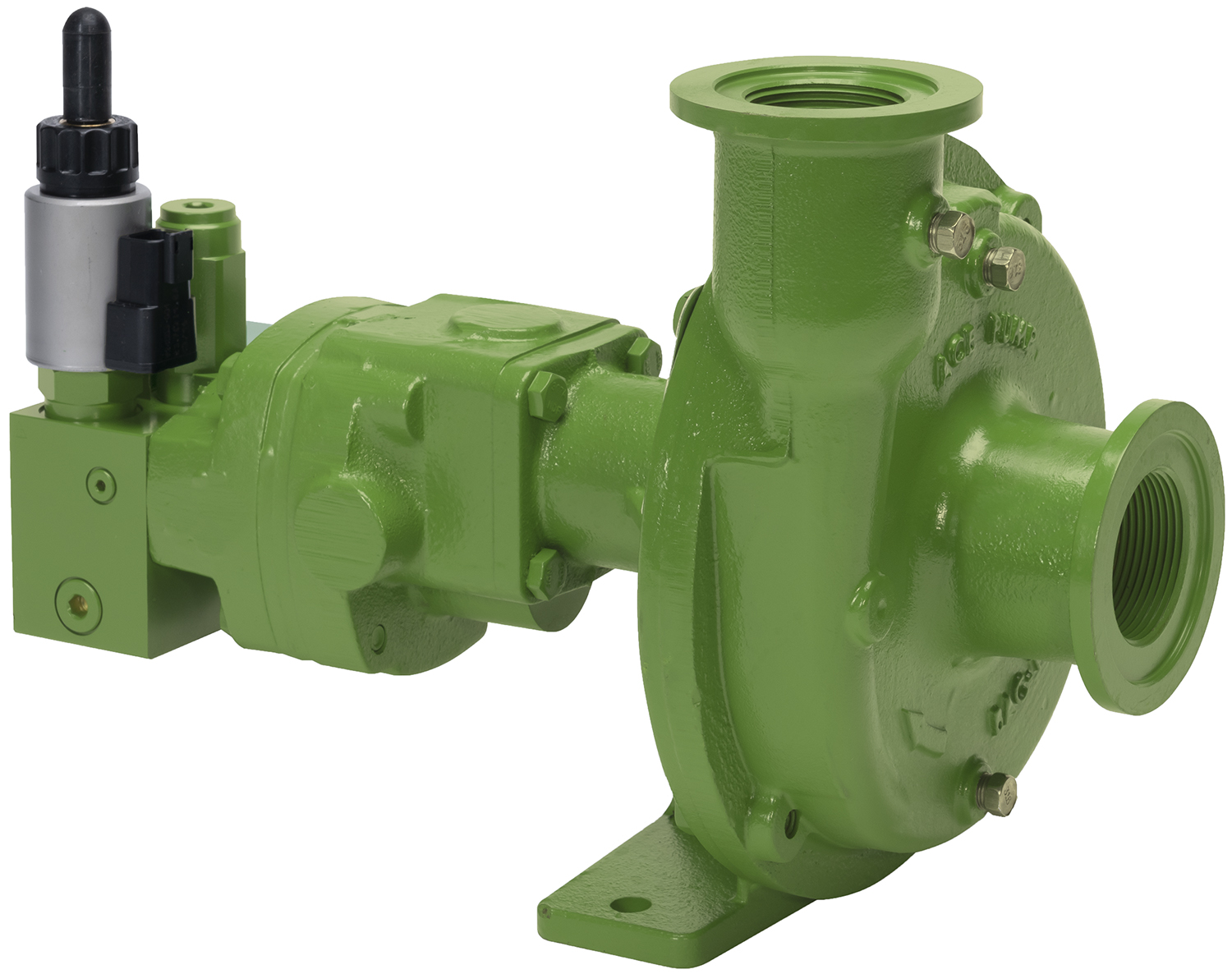

    ACE Cast Iron & Stainless Pumps with Hydraulic Motor and PWM Control System

    These pumps include pulse width modulated control valves. Provides quick rate changes for constant and variable rate applications. For use with closed center hydraulic systems. Pumps run only as fast as needed. Twin valve design prevents overspeeding. Valox impeller standard, cast iron or stainless are optional. Deutsch connectors (2 Pin female DT04-2P).

    Severe Duty Silicon Carbide Seal

    Manufacturer: Ace Pumps
    Part No. Catalog Pump Type Body Material Seal Type Impeller Material Seal Material Max GPM Pump Mfg Drive Price
    Picture of Centrifugal Pump / Hydraulic Motor Unit with PWM Control System, Cast Iron, 7 GPM, Inlet Flanged 220FP & 1-1/2" FPT, Outlet Flanged 200 Std. Port & 1-1/4" FPT, 145 GPM - 120 PSI Max
    SKU: AC150F-PWM-206 Catalog: E0805 Pump Type: Centrifugal Body Material: Cast Iron Seal Type: Mechanical Impeller Material: Valox Seal Material: Silicon Carbide Max GPM:   Pump Mfg:   Drive:   Price: $1,806.00 / EA
    i h
    Picture of Centrifugal Pump / Hydraulic Motor Unit with PWM Control System, 316 Stainless Steel, 7 GPM, Inlet Flanged 220FP & 1-1/2" FPT, Outlet Flanged 200 Std. Port & 1-1/4" FPT, 145 GPM - 120 PSI Max
    SKU: AC150FS-PWM-206 Catalog: E0805 Pump Type:   Body Material:   Seal Type:   Impeller Material:   Seal Material:   Max GPM:   Pump Mfg:   Drive:   Price: $2,480.00 / EA
    i h
    Picture of Centrifugal Pump / Hydraulic Motor Unit with PWM Control System, Cast Iron, 11 GPM, Inlet Flanged 220FP & 1-1/2" FPT, Outlet Flanged 200 Std. Port & 1-1/4" FPT, 155 GPM - 130 PSI Max
    SKU: AC150F-PWM Catalog: E0805 Pump Type: Centrifugal Body Material: Cast Iron Seal Type:   Impeller Material: Valox Seal Material: Silicon Carbide Max GPM: 155 Pump Mfg: Ace Pumps Drive: Hydraulic Motor Price: $1,866.00 / EA
    i h
    Picture of Centrifugal Pump / Hydraulic Motor Unit with PWM Control System, Cast Iron, 13 GPM, Flanged 300 Inlet Port & Flanged 200 FP Outlet, 240 GPM - 120 PSI Max
    SKU: AC205F-PWM Catalog: E0805 Pump Type: Centrifugal Body Material: Cast Iron Seal Type:   Impeller Material: Valox Seal Material: Silicon Carbide Max GPM: 230 Pump Mfg: Ace Pumps Drive: Hydraulic Motor Price: $2,010.00 / EA
    i h
    Picture of Centrifugal Pump / Hydraulic Motor Unit with PWM Control System, 316 Stainless Steel, 13 GPM, Flanged 300 Inlet Port & Flanged 220 FP Outlet, 240 GPM - 120 PSI Max
    SKU: AC205FS-PWM Catalog: E0805 Pump Type: Centrifugal Body Material: Cast Iron Seal Type:   Impeller Material: Valox Seal Material: Silicon Carbide Max GPM:   Pump Mfg: Ace Pumps Drive: Hydraulic Motor Price: $2,786.00 / EA
    i h
