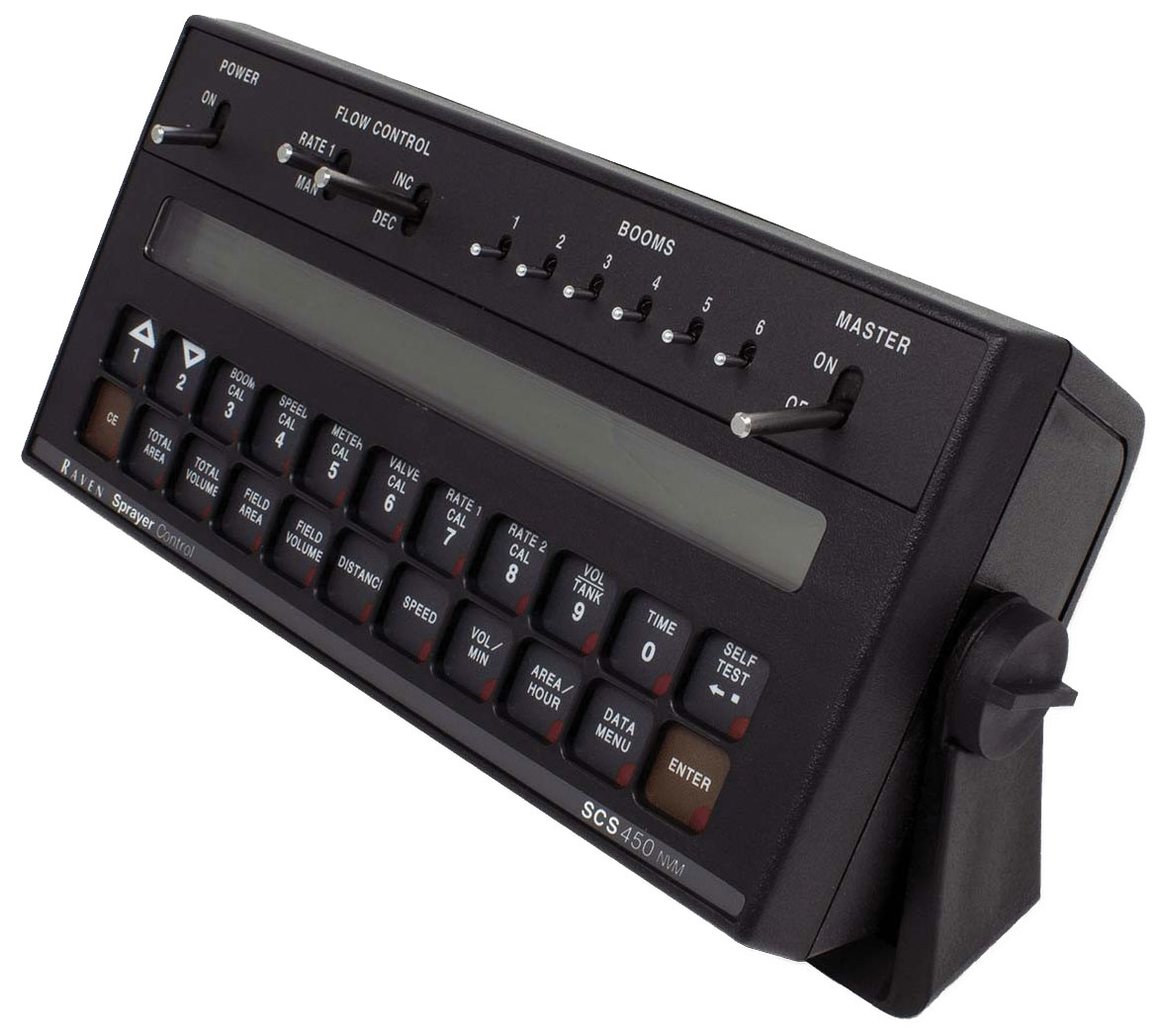

    SCS 450 Console with Serial Interface, 6-Boom Control

    Set your application rate and the SCS450SI automatically maintains that rate throughout your entire spraying job regardless of changes in vehicle speed or terrain, or the number of boom sections being used.
    The rate window in the SCS450SI console continually displays the actual rate of spray application (GPA). A variety of other spraying information is also available in the data window on command:

    Features:
    • Serial Port for use with GPS
    • Total volume applied (cumulative)
    • Total area worked (cumulative)
    • Field volume applied (sub-plot)
    • Field area (sub-plot)
    • Distance traveled (feet or meters)
    • Vehicle speed (mph or kph)
    • Area worked per hour
    • Volume applied per minute (GPM)
    • Time
    • PWM Valve control option
    • 6 Boom Control.


    The SCS450SI enables you to preprogram two application rates. Another switch allows you to manually increase or decrease the pre programmed rate for spot spraying. Serial interface port standard for data logging with Envizio Plus™ or Viper mapping console.
    The large variety of options make the Raven SCS450SI more flexible than any other spray system. When combined with the Raven Accu-Flow attachment the SCS450SI also provides extremely accurate control of anhydrous ammonia placement.

    Note: the SCS 450SI console does not include any cabling – sold separately.

    Manufacturer: Raven Industries
    $2,576.00 / EA
